Powerhead Output Torque 72,000 in-lbs (8135 N-m)

Input / Output Ratio 5958:1

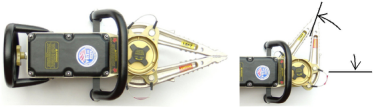

Powerhead Articulation Angle 70°

 Attachment Pins: High-strength steel, ball-detent

Motor Inrush Current 220 Amps

Motor Current @ No Load 23 Amps

Motor Current @ Max. Load 155 Amps

Pigtail Cable Length 12” (305 mm)

 With No Attachments

Weight 32 lbs (14.5 kg)

Envelope (LxWxH)

17” x 10” x 12” (432 x 254 x 305 mm3)

With S-1601 Spreaders Attached

Spreading Force (1” from tip)

8,000 to 11,000 lbs

(35.6 – 48.9 kN)

Spreading Force (At back of arm)

17,530 to 45,240 lbs

 (78.0 – 201.2 kN)

Weight 41 lbs (18.6 kg)

Envelope (LxWxH)

25” x 10” x 12”

(635 x 254 x 305 mm3)

Opening Distance 14” (356 mm)

With C-1601 Curved Cutter Attached

Cutting Force (at blade center)

 30,000+ lbs (133.4 kN)

Weight 44 lbs (19.9 kg)

Envelope (LxWxH) 24” x 10” x 12”

(610 x 254 x 305 mm3)

Opening Distance 5” (127 mm)

With CS-1602 Straight Cutter Attached

Cutting Force (at notch) 45,000+ lbs (200 kN)

Cutting Force (at blade center) 21,000+ lbs (93.4 kN)

Spreading Force 10,000 to 18,000 lbs

(44.5 – 80.1 kN)

Weight 47.5 lbs (21.5 kg)

Envelope (LxWxH) 27” x 10” x 12”

(686 x 254 x 305 mm3)

Opening Distance 10” (254 mm)

PC-100 Controller Unit

Power Input 12 Volts DC

Case Sealed

Weight 5.6 lbs (2.5 kg)

Envelope (LxWxH) 11” x 4.5” x 7.5”

(279 x 114 x 190 mm3)

PWR-3X12 Power Pack

Battery Type   12V, Valve-Reg., Sealed Lead-Acid

Battery Capacity    33Ampere Hour

Case   Fully Vented

Charge Indicator    5 LEDs with test button

Power Connectors    2 high amp, 1 low amp

Weight:33 lbs (15.0 kg)

Envelope (LxWxH)

 12” x 6.5” x 15.5”

(305 x 178 x 368 mm3)

BC-U1 Battery Charger

Input Voltage & Freq. 90-230 V AC, 50-60 Hz

Max. Output Current 4 A ± 5%

Max. Output Voltage 14.8 ± .20 V DC

Weight 2.4 lbs (1.1 kg)

Envelope (LxWxH) 6.8” x 4.2” x 2”

(172 x 107 x 51 mm3)

LB-1204 Flood Light

50 Watts, 3.9 Amps, 4” Dia. Halogen bulb. On/Off switch

JC4-16 Jumper Cables

16 Ft. 4 Ga. Red connector one end, Heavy-duty clamps other end.

EC4-16 Extension Cable

16 Ft. 4 Ga. Red connector both ends

POWER PUSHER® Rams & Extensions

 P-40 Power Pusher Ram

Fully Extended Length    41 in. (104.1 cm)

Fully Retracted length    23 in.(58.4 cm)

Stroke Length   12 in.(30.5 cm)

Adjustment Length   6 in.(15.2 cm)

Housing Slot Width   2.25 in(5.7 cm)

Weight   36 lbs.(16.3 kg)

P-25 Power Pusher Ram

Fully Extended Length   27 in.(68.6 cm)

Fully Retracted length     16 in.(40.6 cm)

Stroke Length    5 in.(12.7 cm)

Adjustment Length      6 in.(15.2 cm）

Housing Slot Width   2.25 in(5.7 cm)

Weight   27 lbs.(12.2 kg)

E-24 Ram Extension

Length 24 in. (61.0 cm)

Weight with handle 15 lbs (6.8 kg)

E-48 Ram Extension

Length 48 in. (121.9 cm)

Weight with handle 30 lbs (13.6 kg)

2C0551-1 Swivel Base Set

Attach to Rams/Extensions for angled operations.

Weight: 13 lbs (5.9 kg)

2C0516-1 Ram Coupling

Connects Power Pushers and

Extensions. Weight: 6 lbs (2.7 kg)

Saw Extrication Kits

SZA-1015 Kit includes Milwaukee Cordless Sawzall, Power Adapter, 16 Ft. Power Cable, 5 Torch Blades, 1 Ax Blade, Contractors Bag. Weight: 18 lbs. (8.2 kg)

BKPK-100 Back Pack

Back pack for Power Pack. Weight: 5 lbs. (2.3 kg)
